Stratified combi storage tank ANDRIANOS FS1 made in Germany, is ideal for use in combination with a heat pump, and with any king of boilers. Effective utilization of regenerative energy sources! Particularly well suited to Legionella – free heating of drinking water. Efficient heat storage through stratifying devices. Drinking water heating through high quality stainless steel corrugated tube with 1 smooth tube heat exchanger for connection to a solar system. High water comfort and particularly hygienic.
Characteristics:
- Material: Steel S235JR (interior bare, exterior primed)
- Insulation – energy class Α only storage tank 500lt: with 75mm Rigid foam composite insulation HVI
- Insulation – energy class Β only storage tank 500lt:: with 75mm PU rigid foam
- Insulation – energy class B (825-2000lt): 160mm Green Line, 140mm cover insulation, and 5mm foil jacket in RAL9006 silver, removable
- Insulation– energy class C (500-2000lt): 120mm Green Line insulation, 100mm cover insulation, and 5mm foil jacket in RAL9006 silver, removable
- Equipment: 1 smooth tube heat exchanger for solar with 1’’ internal thread, high quality stainless steel corrugated tubing 1’’ internal thread for Legionella-free heating of drinking water in continuous flow principle, the spirally corrugated construction causes complete flow through, return stratifying pipe for temperature-dependent layering of the heating return, layer guides, (sensor rail under zip fastening from 600lt)
- Connections: Internal threads
- Operating pressure: Drinking water 10bar max , Heating side max 3bar
- Temperature: max 95°C
- Available on request in energy class A (500lt) and Β (from 500lt to 2.000lt)
Advantages:
- Easy installation
- Simple and cost-effective domestic hot water heating, especially with the use of a heat pump
- Hygienic water heating due to a special corrugated stainless-steel pipe
- Space-saving construction
- It is combined with all conventional heating systems.

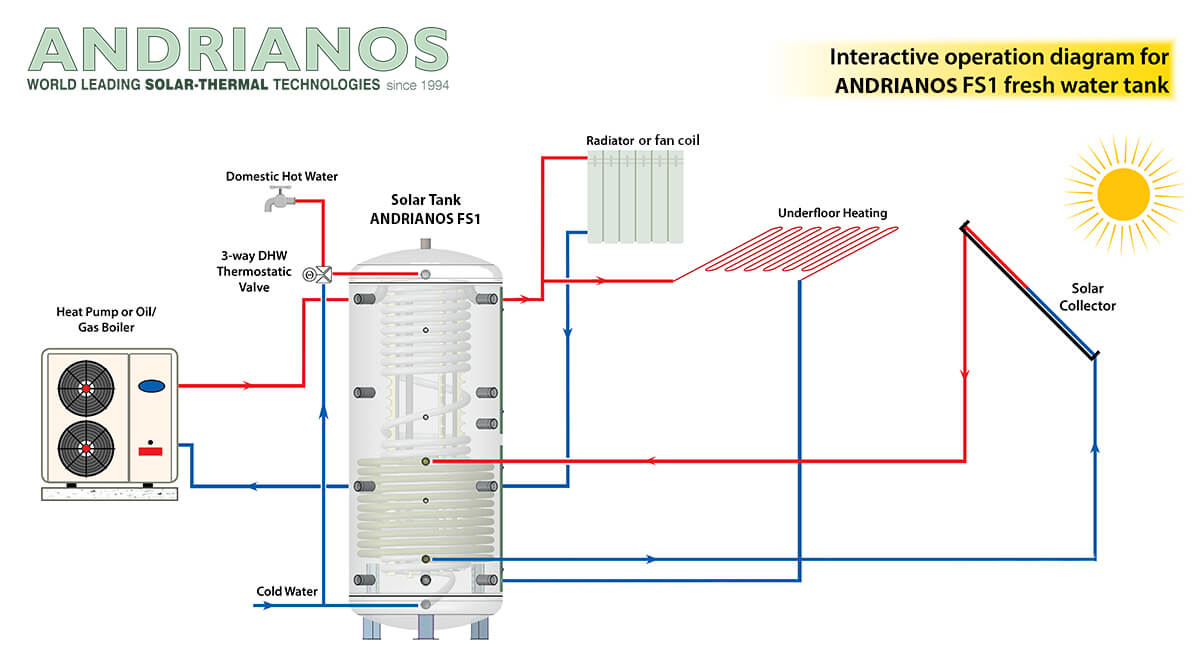

Interactive operation diagram:
Tanks dimensions:
