The Electric Water Heater is a device that provides hot water using electricity.
In particular, the electric water heater is a cylindrical vessel consisting of double thermally insulated walls and an electrical resistance located inside the container.
With the electrical power supply, this resistance heats up and eventualy heats the water contained in the cylinder. The water heater is connected to the water supply and for each amount of hot water pumped for use, there is automatic replenishment with cold water.
With experience in heating systems since 1994, ANDRIANOS has a full range of innovative electric water heaters from the "ARISTON" group, the world's leading manufacturer of water heating products.
ARISTON's electrical water heaters are high energy class products and are fully harmonized with the ErP (Energy related Products) regulation.
The ErP regulation sets the minimum energy performance of heating products to obtain the CE mark and be sold in Europe.
Electric Water Heaters ARISTON
A) Wall-mounted electric water heaters for installation above or below the sink, capacity 10lt, 15lt or 30lt.
Ariston Andris RS Wall mounted Electric Heaters
Ariston Andris LUX Wall mounted Electric Heaters
B) Electric water heaters for horizontal or vertical installation, capacity 50lt, 80lt or 100lt
Ariston Velis Evo, Wall Mounted Electric Water Heater with a capacity of 50lt, 80lt & 100lt
Ariston Velis Evo Plus, Wall Mounted Electric Water Heater with a capacity of 50lt, 80lt & 100lt
Ariston Lydos R, Wall Mounted Electric Water Heater with a capacity of 50lt, 80lt & 100lt
Ariston Lydos ECO, Wall Mounted Electric Water Heater with a capacity of 50lt, 80lt & 100lt
Ariston Lydos HYBRID, Wall Mounted Electric Water Heater with a capacity of 80lt & 100lt
Ariston Lydos WiFi, Wall Mounted Electric Water Heater with a capacity of 50lt, 80lt & 100lt
Ariston PRO1 R, Wall Mounted Electric Water Heater with a capacity of 80lt & 100lt
Ariston PRO1 ECO, Wall Mounted Electric Water Heater with a capacity of 80lt & 100lt
See all electric water heaters in ANDRIANOS eshop

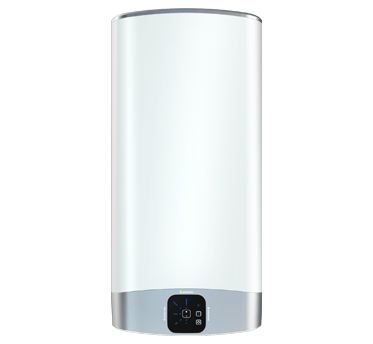

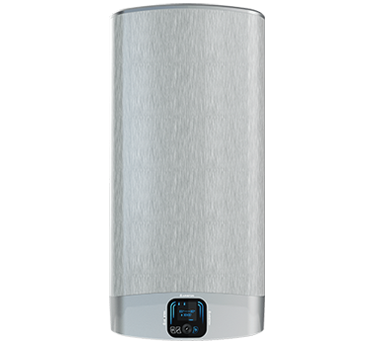

Wall mounted electric water heaters Ariston Velis Evo & Velis Evo Plus - Horizontal or vertical installation
Wall mounted electric water heaters Ariston Velis Evo & Velis Evo Plus can be adapted to any space as they are very thin, only 27cm deep, and can be placed either horizontally or vertically. Their unique design with smooth and soft lines and its available colors, metallic with silver or white with silver, match the furniture of any space.
They have a 5-year warranty for the internal container-system and a 2-year warranty for electrical, electronic and other parts.
Advantages:
- ECO EVO function: Smart enough to learn from your habits day by day, to provide maximum power savings. Remembers when and how much hot water you use, achieving maximum energy efficiency.
- Faster heating time: Intelligent construction with double tank to heat water faster and provide hot shower water in 50 minutes.
- Energy class B
- Shower Ready: Shows when the water for a shower has warmed up.
- The Velis Evo has a multifunctional LED screen & the Velis Evo Eco has a multifunctional LCD screen with indication of available showers and waiting time for the next shower.
Additional functions of Velis Evo Plus :
- Number of available showers: The first level in the market, with a permanent display on the screen of the number of available showers.
- Standby Time: The first level in the market with a permanent display on the standby screen for the next shower.
- Daily schedule: The right water temperature at the right time, thanks to the ability to design the exact time that hot water is ready (up to twice a day).
They are available in 50, 80 and 100 liters versions
See Velis Evo in detail
See Velis Evo Plus in detail
Technical Specifications Ariston Velis Evo & Velis Evo Plus:
| |
VLS50
|
VLS80
|
VLS100
|
VLS PLUS 50
|
VLS PLUS 80
|
VLS PLUS 100
|
|
Capacity
|
50lt
|
80lt
|
100lt
|
50lt
|
80lt
|
100lt
|
|
Power
|
1,5Kw +1Kw
|
1,5Kw+1Kw
|
1,5Kw+1Kw
|
1,5Kw+1Kw
|
1,5Kw+1Kw
|
1,5Kw+1Kw
|
|
Voltage
|
230V
|
230V
|
230V
|
230V
|
230V
|
230V
|
|
Heating Time (DΤ=45°C) h,min
|
1:30
|
2:15
|
2:30
|
1:30
|
2:15
|
2:30
|
|
Pmax operation / Tmaxoperation
|
8bar / 80°C
|
|
Weight
|
21,7Kg
|
28,3Kg
|
32,2Kg
|
21,7Kg
|
28,3Kg
|
32,2Kg
|
|
IP Protection
|
IPX4
|
IPX4
|
IPX4
|
IPX4
|
IPX4
|
IPX4
|
|
ERP Class
|
Β
|
Β
|
Β
|
Β
|
Β
|
Β
|
|
Warranty
|
5 years internal container system / 2 years electric, electronic and other parts
|

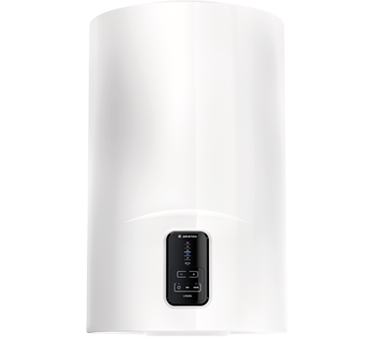

Wall mounted electric water heaters Ariston Lydos R & Lydos ECO - Vertical installation
Wall mounted electric water heaters Ariston Lydos R & Lydos ECO have unique technologies, new materials and High Tech Design, for a completely new hot water experience! They are mounted vertically and are equipped with a High-Tech user-friendly screen.
They have a 5-year warranty for the internal container-system and a 2-year warranty for electrical, electronic and other parts.
Advantages:
- WaterPlus technology: keeps incoming cold water at the bottom of the tank to ensure reduced mixing with the stored hot water. This allows up to + 16% more hot water giving the comfort of an extra hot shower.
- Absolute safety system that ensures the good operation of the product.
- Better use of energy and renewable sources, enhanced efficiency.
- Energy class B for Lydos ECO & Energy class C for Lydos R.
- Complies with top ESWH regulations.
Additional functions of Lydos Eco:
- ECO EVO function: Smart enough to learn from your habits day by day, to provide maximum power savings. Remembers when and how much hot water you use, achieving maximum energy efficiency.
- Shower Ready: Shows when the water for a shower has warmed up.
- T-Max function: Meet unexpected hot water demand.
They are available in 50, 80 and 100 liters versions
See Lydos R in detail
See Lydos Eco in detail
Technical Specifications Ariston Lydos R & Lydos ECO:
|
|
ECO50V
|
ECO80V
|
ECO100V
|
R 50
|
R 80
|
R 100
|
|
Capacity
|
50lt
|
80lt
|
100lt
|
50lt
|
80lt
|
100lt
|
|
Power
|
2 Kw
|
2 Kw
|
2 Kw
|
3Kw
|
3Kw
|
3Kw
|
|
Diameter
|
450mm
|
450mm
|
450mm
|
450mm
|
450mm
|
450mm
|
|
Voltage at maximum operating temperature
|
230V
|
230V
|
230V
|
230V
|
230V
|
230V
|
|
Heating time (DT = 45 ° C) h, min
|
1:27
|
2:11
|
2:46
|
1:27
|
2:11
|
2:46
|
|
Qpr Kwr/24h
|
0,99
|
1,35
|
1,56
|
0,99
|
1,35
|
1,56
|
|
V40 (I) at maximum operating temperature
|
108
|
174
|
216
|
91
|
147
|
182
|
|
Maximum operating temperature
|
80°C
|
80°C
|
80°C
|
75°C
|
75°C
|
75°C
|
|
IP Protection
|
IPX3
|
IPX3
|
IPX3
|
IPX3
|
IPX3
|
IPX3
|
|
Weight Kg
|
16
|
20,5
|
24
|
16
|
20,5
|
24
|
|
ERP Class
|
B
|
B
|
B
|
C
|
C
|
C
|
|
Warranty
|
5 years internal container system / 2 years electric, electronic and other parts
|
|
TOTAL DIMENSIONS
|
|
Height
|
528
|
733
|
885
|
568
|
773
|
913
|
|
Depth
|
470
|
470
|
470
|
480
|
480
|
480
|
Wall mounted electric water heaters Ariston PRO1 R & PRO1 ECO - Horizontal installation
Wall mounted electric water heaters Ariston PRO1 R & PRO1 ECO have a built-in WaterPlus function that guarantees high levels of comfort. Their placement is horizontal and they offer + 16% more hot water.
They have a 5-year warranty for the internal container-system and a 2-year warranty for electrical, electronic and other parts.
Οι ηλεκτρικοί θερμοσίφωνες αποθήκευσης Ariston PRO1 R & PRO1 ECO διαθέτουν ενσωματωμένη λειτουργία WaterPlus που εγγυάται υψηλά επίπεδα άνεσης. Η τοποθέτηση τους είναι οριζόντια και προσφέρουν + 16% περισσότερο ζεστό νερό.
Advantages:
- WaterPlus technology: keeps incoming cold water at the bottom of the tank to ensure reduced mixing with the stored hot water. This allows up to + 16% more hot water giving the comfort of an extra hot shower.
- Energy class B for PRO1 ECO & Energy class C for PRO1 R.
- Simplicity of control: Large inspection flap for easier access to the internal components of the products.
Additional functions of PRO1 ECO:
- ECO EVO function: Smart enough to learn from your habits day by day, to provide maximum power savings. Remembers when and how much hot water you use, achieving maximum energy efficiency.
- Shower Ready: Shows when the water for a shower has warmed up.
They are available in 80 and 100 liters versions
See PRO1 R in detail
See PRO1 ECO in detail
Technical Specifications Ariston PRO1 R & PRO1 ECO:
| |
PRO1 R 80
|
PRO1 R 100
|
PRO1 ECO 80
|
PRO1 ECO 100
|
|
Capacity
|
80lt
|
100lt
|
80lt
|
100lt
|
|
Power
|
3Kw
|
3Kw
|
1,8Kw
|
1,8Kw
|
|
Diameter
|
450mm
|
450mm
|
450mm
|
450mm
|
|
Voltage at maximum operating temperature
|
230V
|
230V
|
230V
|
230V
|
|
Heating time (DT = 45 ° C) h, min
|
2:11
|
2:46
|
2:11
|
2:46
|
|
Qpr Kwr/24h
|
1,48
|
1,65
|
1,35
|
1,56
|
|
V40 (I) at maximum operating temperature
|
95
|
120
|
174
|
216
|
|
Maximum operating temperature
|
75°C
|
75°C
|
80°C
|
80°C
|
|
IP Protection
|
IPX1
|
IPX1
|
IPX3
|
IPX3
|
|
Weight Kg
|
20,5
|
24
|
20,5
|
24
|
|
ERP Class
|
C
|
C
|
B
|
B
|
|
Height/ Depth mm
|
778/480
|
918/480
|
758mm/470mm
|
913mm/470mm
|

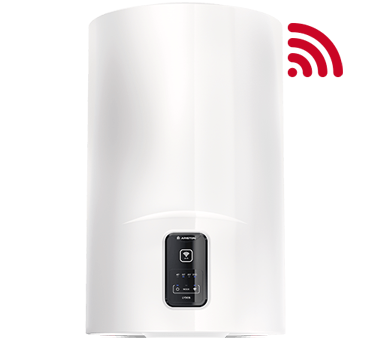

Wall mounted electric water heater LYDOS WIFI (NEW SERIES) - Vertical installation
Wall mounted electric water heaters Ariston Lydos Wifi has unique technologies and new smart connectivity, for a completely new hot water experience! Their installation is vertical and with the Aqua Ariston NET, the water heater can be controlled and adjusted remotely. Remote control, usage reports and online technical support, all in one free smartphone app.
It has a 5-year warranty for the internal container-system and a 2-year warranty for electrical, electronic and other parts.
Advantages:
- ECO EVO function: Smart enough to learn from your habits day by day, to provide maximum power savings. Remembers when and how much hot water you use, achieving maximum energy efficiency.
- Energy class B.
- Shower Ready: Shows when the water for a shower has warmed up.
- WaterPlus technology: keeps incoming cold water at the bottom of the tank to ensure reduced mixing with the stored hot water. This allows up to + 16% more hot water giving the comfort of an extra hot shower.
- Up to 25% energy savings using the Wifi application.
- Live push notification in case of a problem.
- Weekly planning with up to 2 daily heating cycles.
- Remaining Heating Time Mode: the waiting time to reach the programmed temperature is displayed in the application.
Available 50lt, 80lt & 100lt models
See Lydos Wifi in detail
Technical Specifications Ariston Lydos Wifi 50 V - 50lt
| |
WIFI 50
|
WIFI 80
|
WIFI 100
|
|
Capacity
|
50lt
|
80lt
|
100lt
|
|
Power
|
1,8Kw
|
1,8Kw
|
1,8Kw
|
|
Diameter
|
450mm
|
450mm
|
450mm
|
|
Voltage
|
230V
|
230V
|
230V
|
|
Qpr Kwr/24h
|
0,99
|
1,35
|
1,56
|
|
Heating time (ΔΤ=45°C) h,min
|
1:27
|
2:11
|
2:46
|
|
V40 (I) with set temperature of 65° C
|
108
|
174
|
216
|
|
Max Operating temperature
|
80°C
|
80°C
|
80°C
|
|
Weight Kg
|
16
|
20,5
|
24
|
|
Protect IP
|
IPX3
|
IPX3
|
IPX3
|
|
Energy class
|
Β
|
Β
|
Β
|
|
TOTAL DIMENSIONS
|
|
Height
|
528mm
|
733mm
|
885mm
|
|
Depth
|
470mm
|
470mm
|
470mm
|
Wall mounted hybrid electric water heater Ariston Lydos Hybrid (NEW SERIES) - Vertical installation
The first hybrid electric water heater Lydos Hybrid is energy class A and provides daily hot water at half cost. Designed to be mounted vertically and simply like a classic electric water heater and to be adjusted easily and quickly.
It has a 5-year warranty for the internal container-system and a 2-year warranty for electrical, electronic and other parts.
Advantages:
- Hybrid intelligence: Learning from your habits, innovative i-memory software efficiently manages hybrid technology, choosing the most convenient energy between electrical and renewable heat pump energy. After a learning interval, i-memory is able to program the water temperature every hour in a way that meets the user's needs, saving time and energy.
- 50% energy savings daily: Exclusive hybrid intelligence effectively combines electricity with renewable energy heat pump and adapts to your habits.
- I-memory, Green and Boost modes speed up hot water production and the Shower ready icon notifies you when hot water is ready for the first shower.
- Hidden hydraulic connections
- Available accessories: condensate tray
Available 80lt & 100lt models
See Lydos Hybrid in detail
Technical Specifications Ariston Lydos Hybrid:
|
|
HYBRID 80
|
HYBRID 100
|
|
Capacity
|
80lt
|
100lt
|
|
Perfomance
|
1,2Kw
|
|
Average power consumption
|
0,19Kw
|
|
Maximum power consumption
|
1,42Kw
|
|
Voltage
|
220V-240V
|
|
Heating time in operation i-memory (ΔΤ=43°C)
|
5,25 h,min
|
7,03 h,min
|
|
Heating time in operation Green (ΔΤ=43°C)
|
2,34 h,min
|
3,13 h,min
|
|
Heating time in operation Boost (ΔΤ=43°C)
|
9,21 h,min
|
12,18 h,min
|
|
Pmax operation
|
8bar
|
|
Minimum / Maximum operating temperature
|
12°C /40°C
|
|
Noise level
|
49dB
|
|
Weight
|
37,5Kg
|
44Kg
|
|
IP Protection
|
IPX4
|
IPX4
|
|
Type of refrigerant
|
R134a
|
|
Refrigerant filling
|
180g
|
200g
|
|
GWP
|
1430
|
|
Equivalent CO2
|
0,257t
|
0,286t
|
|
ERP Class
|
A
|
A
|
|
Removal Profile
|
Μ
|
Μ
|
|
Warranty
|
5 years internal container system / 2 years electric, electronic and other parts
|
|
TOTAL DIMENSIONS
|
|
Height
|
100,90cm
|
115,30cm
|
|
Diameter
|
46,50cm
|
46,50cm
|
Contact ANDRIANOS to find out about the Ariston electric water heaters

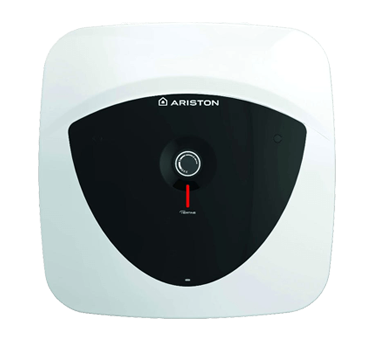

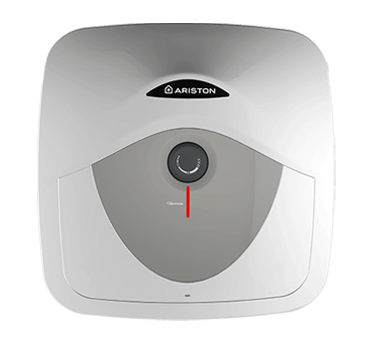

Wall mounted Electric Water Heater Ariston Andris RS & LUX
Wall mounted electric water heaters Ariston Andris RS & LUX can be placed either above or below the sink. The copper heating element helps increase the hygiene and purity of the water heated by the water heater.
They have a 5-year warranty for the internal container-system and a 2-year warranty for electrical, electronic and other parts.
Advantages:
- External temperature adjustment: Easy temperature adjustment, thanks to the external regulator.
- High density and thick polyurethane insulation: Keeps water warm for a long time.
- Small size: Thanks to the Mini-Tank system, the comfort of the Ariston water heater focuses on a compact solution.
- ABS safety package.
- Energy class A for the models RS10 OR, RS15 OR, LUX10 OR & LUX15 OR (mounting above the sink), Energy class B for the models RS10 UR, RS15 UR, LUX10 UR & LUX15 UR (mounting from the sink) & Energy class C for the RS30 & LUX30 models (mounting above the sink).
The Andris RS series has IP = IPX1 protection, while the Andris LUX IP = IPX5 series.
See Andris RS in detail
See Andris LUX in detail
Technical Specifications Ariston Andris RS:
| |
RS10
|
RS10U
|
RS15
|
RS15U
|
RS30
|
|
Capacity
|
10lt
|
10lt
|
15lt
|
15lt
|
30lt
|
|
Installation
|
Over Sink |
Under Sink |
Over Sink |
Under Sink |
Over Sink |
|
Power Kw
|
1,2
|
1,2
|
1,2
|
1,2
|
1,5
|
|
Voltage V
|
230
|
230
|
230
|
230
|
230
|
|
Heating time (DT = 45 ° C) h, min
|
0,29
|
0,29
|
0,44
|
0,44
|
1,1
|
|
Thermal dispersion at 65 ° C Kwh / 24h
|
0,43
|
0,55
|
0,53
|
0,65
|
0,61
|
|
Pmax function / operation Tmax
|
8bar / 80°C
|
8bar / 80°C
|
8bar / 80°C
|
8bar / 80°C
|
8bar / 80°C
|
|
Weight Kg
|
6,6
|
6,6
|
7,4
|
7,4
|
12,8
|
|
IP protection
|
IPX1
|
IPX1
|
IPX1
|
IPX1
|
IPX1
|
|
ERP class
|
A
|
B
|
A
|
B
|
C
|
|
Tapping
|
XXS |
XXS |
XXS |
XXS |
S |
Technical Characteristics Ariston Andris LUX 10 OR (10lt) :
| |
LUX10 OR
|
LUX10 UR
|
LUX15 OR
|
LUX15 UR
|
LUX30
|
|
Capacity
|
10lt
|
10lt
|
15lt
|
15lt
|
30lt
|
|
Power
|
1,2Kw
|
1,2Kw
|
1,2Kw
|
1,2Kw
|
1,5Kw
|
|
Voltage
|
230V
|
230V
|
230V
|
230V
|
230V
|
|
Heating time (DT = 45 ° C) h, min
|
0,29
|
0,29
|
0,44
|
0,44
|
1,1
|
|
Thermal dispersion at 65 ° C Kwh / 24h
|
0,43
|
0,55
|
0,53
|
0,65
|
0,61
|
|
Pmax function / operation Tmax
|
8bar / 80°C
|
8bar / 80°C
|
8bar / 80°C
|
8bar / 80°C
|
8bar / 80°C
|
|
Weight
|
6,6Kg
|
6,6Kg
|
7,4Kg
|
7,4Kg
|
12,8Kg
|
|
IP protection
|
IPX5
|
IPX5
|
IPX5
|
IPX5
|
IPX5
|
|
ERP class
|
A
|
B
|
A
|
B
|
C
|
|
Guarantee
|
5 years inside-system / 2 years container electrical, electronic and other parts
|
Contact ANDRIANOS to find out about the Ariston electric water heaters
