Enameled drinking water storage tank ANDRIANOS PUMP DOUBLE made in Germany, is designed for use with a heat pump and has drinking water storage tank 200lt or 300lt with high performance heat ex-changer and built-under buffer storage tank 80lt or 100lt.
Characteristics:
- Material: Drinking water storage tank steel S235JR, enameled according to DIN 4753 (TUV tested); buffer storage tank: Steel S235JR, interior bare
- Insulation for 200lt & 300lt tanks – energy class Α with 75mm Rigid foam composite insulation HVI
- Insulation for 300lt tanks– energy class B: 75mm PU rigid foam and 5mm foil jacket in RAL 9006 silver, pre-fitted
- Operating pressure: Drinking water max 10bar – Heating side max 3 bar
- Temperature: max 95°C
- Equipment: 1 high performance heat exchanger in the drinking water storage tank, magnesium anode, inspection opening (flange), height adjustable feet, analogue thermometer, 1 sleeve for electrical heating insert with 1 ½’’ internal thread and 1 sleeve with ½’’ internal thread in the buffer storage tank
Interactive operation diagram:

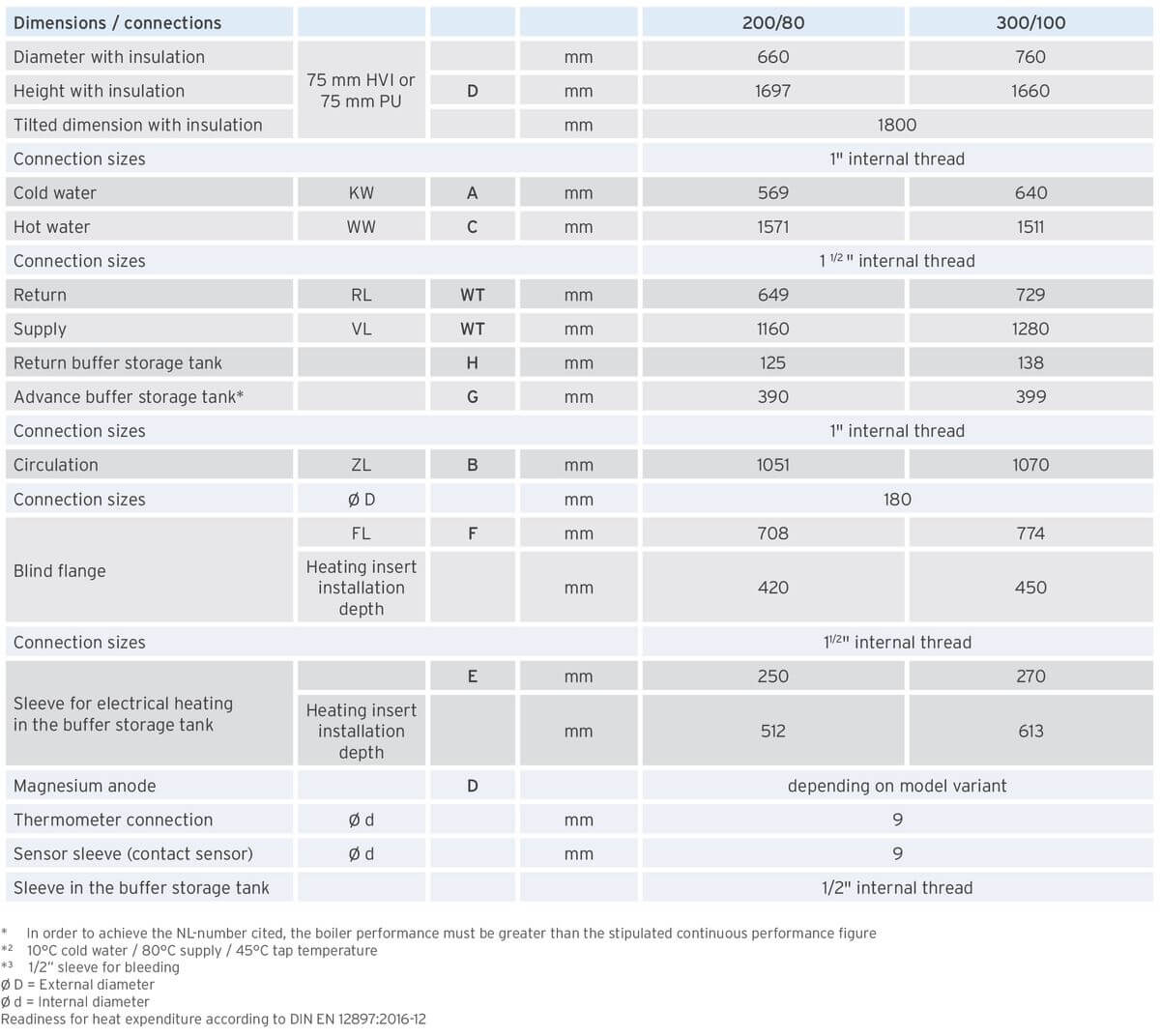

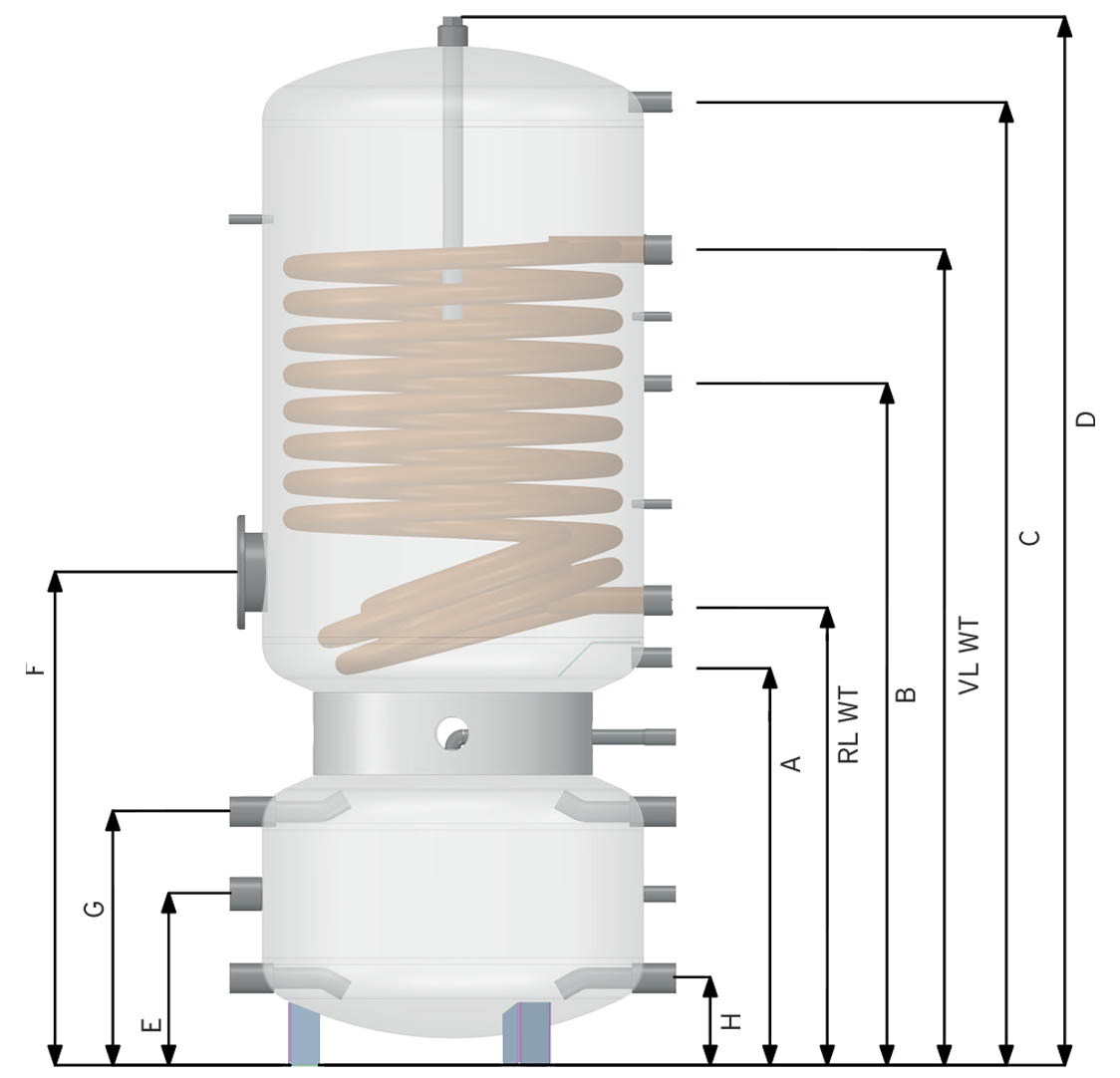

Tanks dimensions:
