ANDRIANOS, recognizing the benefits of installing mechanical ventilation systems with heat recovery in buildings, wanted to expand its product range to cover all possible ventilation needs in a building. We present to you the new collaboration with the company Blauberg Ventilatoren, which with its products guarantees innovative technology and timeless design in the ventilation industry.
See in detail the mechanical ventilation systems with heat recovery
Blauberg Recovery Ventilation Systems - Products Available
VENTO SOLO A35
VENTO SOLO A35, A50 & Α60 V2
VENTO ERGO A25, A50 & Α85
VENTO EXPERT A30, A50 & Α100
VENTO SOLO A35
The air-to-air exchanger with heat recovery VENTO SOLO A35 by BLAUBERG is an indoor ventilation system, for which no ducts are required. It ensures the supply of clean fresh air, by extracting and supplying air alternately, while at the same time it maintains the heat of the room, thanks to the ceramic exchanger it has with an efficiency of up to 85%.
Features:
- Energy class Α
- Airflow up to 46m3/h
- Built-in G3 category dust filters, for the incoming and outgoing air, washable and easily removable.
- Low Power Consumption from 1.20W.
- It does not require condensate drainage.
- Two suction speeds.
- Reducing the cost of heating in winter and cooling in summer.
- Protection from external noise.
- The motor has overheating protection and bearings for longer life.
- The air duct can be extended by a pipe of the same diameter at a distance of up to 3m.
- Suitable for replacing an existing fan with minimal intervention.
On the left the On/Off switch | Right cord to change gear
Product cutting VENTO SOLO A35

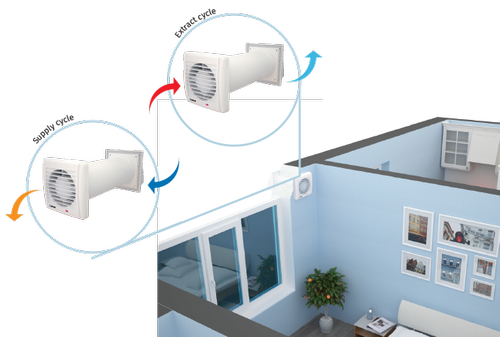

VENTO SOLO A35 installed in the building
Operation logic - 2 Cycles:
1st Phase (Air Extract)
- The ventilation unit exhausts the indoor air with the help of a fan, which passes the air through the heat exchanger for 70 seconds.
- The exchanger (ceramic element) stores the heat of its exhaust air so that it is available in the next phase.
2nd Phase (Air Supply)
- Once the 70 seconds are up, the system changes the direction of rotation of the fan, which now introduces fresh air from the environment into the interior.
- The incoming air passes through the exchanger where it absorbs (recovers) the stored, from the 1st phase, heat.
- Thus the fresh air is introduced into the interior, preheated and clean.
- Thanks to the filters the incoming air is free of dust, viruses, pollen and suspended particles.
- As soon as the 70 seconds of the second phase are completed, the system continues its operation, constantly repeating the cycle described above.
- This ensures the continuous renewal of quality air to the interior space, maintaining its thermal comfort.
Technical Characteristics:
|
Air flow at minimum speed / maximum speed
|
30m3/h / 46m3/h
|
|
Ceramic heat exchanger efficiency
|
Up to 85%
|
|
Noise at maximum speed (3m)
|
32 dB(A)
|
|
Noise at minimum speed (3m)
|
27 dB(A)
|
|
Transported air temperature
|
-15°C… + 40°C
|
|
Energy consumption (1st - 2nd speed)
|
1,20-1,70 W
|
|
Filters included
|
2
|
|
Class filtering
|
ΕΝ 779 G3
|
|
Energy class
|
A
|
|
Power supply
|
220-240Vac
|
|
Ingress protection rating
|
ΙΡ24
|
|
Diameter
|
Φ106
|
Total dimensions [mm]:
Energy label:
VENTO SOLO A35, A50 & Α60 V2
VENTO SOLO A35, A50 & A60 V2 wall ventilator with heat and energy recovery from BLAUBERG is an indoor ventilation system without the need for ducts. Ensures the supply of clean fresh air, with air being alternately extracted and supplied, while at the same time preserving the heat of the room, thanks to its ceramic exchanger with an efficiency of up to 85%. In addition, it ensures a balance in humidity levels in the room thanks to the built-in humidity sensor.
Features:
- Energy class Α.
- Air flow up to 60m3/h.
- Built-in filters with class G3 to clean supply and extract air flows, washable and easily removable.
- Low Power Consumption from 1.20W.
- Control via remote control.
- Reducing the cost of heating in winter and cooling in summer.
- Protect against outdoor noise.
- Prevent penetration of excessive humidity and appearance of mould.
- It does not require condensate drainage.
- The motor has overheating protection and bearings for longer life.
- The air duct can be extended by a pipe of the same diameter at a distance of up to 3m.
- Suitable for replacing an existing fan with minimal intervention.
Remote control
Product cutting VENTO SOLO A35, A50 & A60 V2
VENTO SOLO A35, A50 & A60 V2 installed in the building
Operation logic - 2 Cycles:
1st Phase (Air Extract)
- The ventilation unit exhausts the indoor air with the help of a fan, which passes the air through the heat exchanger for 70 seconds.
- The exchanger (ceramic element) stores the heat of its exhaust air so that it is available in the next phase.
2nd Phase (Air Supply)
- Once the 70 seconds are up, the system changes the direction of rotation of the fan, which now introduces fresh air from the environment into the interior.
- The incoming air passes through the exchanger where it absorbs (recovers) the stored, from the 1st phase, heat.
- Thus the fresh air is introduced into the interior, preheated and clean.
- Thanks to the filters the incoming air is free of dust, viruses, pollen and suspended particles.
- As soon as the 70 seconds of the second phase are completed, the system continues its operation, constantly repeating the cycle described above.
- This ensures the continuous renewal of quality air to the interior space, maintaining its thermal comfort.
Technical Characteristics:
| |
VENTO SOLO A35
|
VENTO SOLO A50
|
VENTO SOLO A60
|
|
Air flow at minimum speed / maximum speed
|
30m3/h / 46m3/h
|
25m3/h / 50m3/h
|
35m3/h / 60m3/h
|
|
Ceramic heat exchanger efficiency
|
Up to 85%
|
|
Noise at maximum speed (3m)
|
26 dB(A)
|
29 dB(A)
|
29 dB(A)
|
|
Noise at minimum speed (3m)
|
21 dB(A)
|
16 dB(A)
|
27 dB(A)
|
|
Transported air temperature
|
-15°C + 40°C
|
|
Energy consumption (1st - 2nd speed)
|
1,50-2,30 W
|
0,70-2,30 W
|
1,10-3,20 W
|
|
Included filters
|
2
|
|
Class Filter
|
ΕΝ 779 G3
|
|
Energy class
|
A
|
|
Power supply
|
220-240Vac
|
|
Ingress protection rating
|
ΙΡ24
|
|
Diameter
|
Φ106
|
Φ131
|
Φ156
|
Total dimensions [mm]:
| |
∅ D |
B |
B1 |
L |
L1 |
L2 |
| VENTO SOLO A35 |
106 |
150 |
153 |
305-380 |
35 |
69 |
| VENTO SOLO A50 |
131 |
175 |
186 |
305-380 |
35 |
86 |
| VENTO SOLO A60 |
156 |
205 |
186 |
305-380 |
35 |
86 |
VENTO ERGO A25, A50 & Α85
VENTO ERGO A25, A50 & Α85 wall ventilator with heat and energy recovery from BLAUBERG is an indoor ventilation system without the need for ducts. Ensures the supply of clean fresh air, with air being alternately extracted and supplied, while at the same time preserving the heat of the room, thanks to its ceramic exchanger with an efficiency of up to 90%. In addition, by placing more than two units in a building, a coordinated network based on several integrated ventilation units of a room with central control can be created.
Features:
- Energy class Α.
- Air flow up to 85m3/h.
- Built-in filters with class G3 to clean supply and extract air flows, washable and easily removable.
- Low Power Consumption from 3,68W.
- Control via remote control.
- It does not require condensate drainage.
- Three unit speeds
- Reducing the cost of heating in winter and cooling in summer.
- Protect against outdoor noise.
- Prevent penetration of excessive humidity and appearance of mould.
- The motor has overheating protection and bearings for longer life.
- The air duct can be extended by a pipe of the same diameter at a distance of up to 3m.
- Suitable for replacing an existing fan with minimal intervention.
Remote Control
- Passive air supply mode: The automatic ahutters are opened, the fan does not run.
- Ventilation mode: The integrated units in permanent air supply or air extract mode depending on settings during mounting. The unit is set into air extract mode by default.
- Air supply mode: The unot operates in permanent air supply mode.
- Reversible ventilation with heat recovery: The unit switches from supply to extract mode and vice versa in set time periods and transfers the heat and moisture contained in the extract air to cold intake air in winter or the coolness in summer through the ceramic heat exchanger.
- Humidity control mode: Set required humidity level (45, 55 or 65%). The unit automatically maintains the comfortable set indoor humidity point.
- Night mode: In the night the unit is switched to low speed mode by the photo sensor.
Control from the unit
Product cutting VENTO ERGO A25, A50 & Α85
Operation logic - 2 Cycles:
1st Phase (Air Extract)
- The ventilation unit exhausts the indoor air with the help of a fan, which passes the air through the heat exchanger for 70 seconds.
- The exchanger (ceramic element) stores the heat of its exhaust air so that it is available in the next phase.
2nd Phase (Air Supply)
- Once the 70 seconds are up, the system changes the direction of rotation of the fan, which now introduces fresh air from the environment into the interior.
- The incoming air passes through the exchanger where it absorbs (recovers) the stored, from the 1st phase, heat.
- Thus the fresh air is introduced into the interior, preheated and clean.
- Thanks to the filters the incoming air is free of dust, viruses, pollen and suspended particles.
- As soon as the 70 seconds of the second phase are completed, the system continues its operation, constantly repeating the cycle described above.
- This ensures the continuous renewal of quality air to the interior space, maintaining its thermal comfort.
Technical Characteristics:
| |
VENTO ERGO 25-1 PRO
|
VENTO ERGO A50-1 PRO V.3
|
VENTO ERGO A85-1 PRO V.3
|
|
Air Flow at max. 1st - 2nd - 3rd speed
|
7m3/h - 16m3/h - 25m3/h
|
20m3/h - 35m3/h - 50m3/h
|
36m3/h - 59m3/h - 85m3/h
|
|
Ceramic heat exchanger efficiency
|
Έως 85%
|
Έως 88%
|
Έως 90%
|
|
Noise at 1st - 2nd - 3rd speed (3m) according to ISO 3741: 2004
|
22 - 25 - 33 dB(A)
|
13 - 20 -23 dB(A)
|
19 - 25 - 34 dB(A)
|
|
Noise at 1st - 2nd - 3rd speed (1m) according to ISO 3741: 2004
|
31 - 35 - 43 dB(A)
|
22 - 29 - 32 dB(A)
|
29 – 35 - 44 dB(A)
|
|
Transported air temperature
|
-20°C.. + 40°C
|
|
Energy consumption (1st - 2nd - 3rd speed)
|
3,68 - 4,15 - 5,59 W
|
4,50 – 5,00 – 7,00 W
|
4,74 - 6,56 - 9,65 W
|
|
Included filters
|
2
|
|
Class Filter
|
ΕΝ 779 G3
|
|
Energy class
|
A
|
|
Power supply
|
100-230 Vac
|
100-240 Vac
|
220-240Vac
|
|
Ingress protection rating
|
ΙΡ24
|
|
Diameter
|
Φ107
|
Φ157
|
Φ157
|
Total dimensions [mm]:
Energy Labels:
VENTO EXPERT A30, A50 & Α100
VENTO EXPERT A30, A50 & Α100 wall ventilator with heat and energy recovery from BLAUBERG is an indoor ventilation system without the need for ducts. Ensures the supply of clean fresh air, with air being alternately extracted and supplied, while at the same time preserving the heat of the room, thanks to its ceramic exchanger with an efficiency of up to 95%, due to its innovative six-cell structure. In addition, there is the ability for Wi-Fi communication between several single room ventilation units for coordinated operation.Controlled by Android or iOS smartphone or tablet.
Features:
- Energy class Α.
- Air flow up to 108m3/h.
- Built-in filters with class G3 to clean supply and extract air flows, washable and easily removable.
- Low Power Consumption from 1,80W.
- Control via remote control.
- It does not require condensate drainage.
- Reducing the cost of heating in winter and cooling in summer.
- Two unit speeds
- Protect against outdoor noise.
- Prevent penetration of excessive humidity and appearance of mould.
- The motor has overheating protection and bearings for longer life.
- The air duct can be extended by a pipe of the same diameter at a distance of up to 3m.
- Suitable for replacing an existing fan with minimal intervention.
Remote control for the models VENTO EXPERT A50 S10 W V.3 & Α100 S10 W V.2
Product cutting VENTO EXPERT A50 S10 W V.3 & Α100 S10 W V.2
Product cutting VENTO EXPERT A30 S10 W V.2
Operation logic - 2 Cycles:
1st Phase (Air Extract)
- The ventilation unit exhausts the indoor air with the help of a fan, which passes the air through the heat exchanger for 70 seconds.
- The exchanger (ceramic element) stores the heat of its exhaust air so that it is available in the next phase.
2nd Phase (Air Supply)
- Once the 70 seconds are up, the system changes the direction of rotation of the fan, which now introduces fresh air from the environment into the interior.
- The incoming air passes through the exchanger where it absorbs (recovers) the stored, from the 1st phase, heat.
- Thus the fresh air is introduced into the interior, preheated and clean.
- Thanks to the filters the incoming air is free of dust, viruses, pollen and suspended particles.
- As soon as the 70 seconds of the second phase are completed, the system continues its operation, constantly repeating the cycle described above.
- This ensures the continuous renewal of quality air to the interior space, maintaining its thermal comfort.
Technical Characteristics:
| |
VENTO EXPERT A30 S 10
|
VENTO EXPERT A50-1 S10
|
VENTO EXPERT A100-1 S 10
|
|
Air Flow at max. 1st - 2nd - 3rd - ΜΑΧ speed
|
10 - 20 - 30 m3/h
|
15 - 30 - 50 m3/h
|
18 - 30 - 58 -108 m3/h
|
|
Ceramic heat exchanger efficiency
|
Up to 81%
|
Up to 95%
|
Up to 87%
|
|
Noise at 1st - 2nd - 3rd - ΜΑΧ speed (3m) according to ISO 3741: 2004
|
21 - 28 -31 dB(A)
|
4 - 16 - 28 dB(A)
|
13 - 18 - 30 - 42 dB(A)
|
|
Noise at 1st - 2nd - 3rd - ΜΑΧ speed (1m) according to ISO 3741: 2004
|
30 - 37 - 40 dB(A)
|
13 - 25 - 37 dB(A)
|
23 - 27 - 40 - 51 dB(A)
|
|
Transported air temperature
|
-15°C.. + 40°C
|
-20°C.. + 40°C
|
-20°C.. + 40°C
|
|
Energy consumption (1st - 2nd - 3rd - ΜΑΧ speed)
|
1,80 - 3,00 - 4,40 W
|
5,00 - 6,00 - 8,50 W
|
3,20 – 4,00 – 6,60 – 18,00 W
|
|
Included filters
|
2
|
|
Class Filter
|
ΕΝ 779 G3
|
|
Energy class
|
A
|
|
Power supply
|
100-240Vac
|
|
Ingress protection rating
|
ΙΡ24
|
|
Diameter
|
Φ104
|
Φ160
|
Φ160
|
Total dimensions [mm]:
