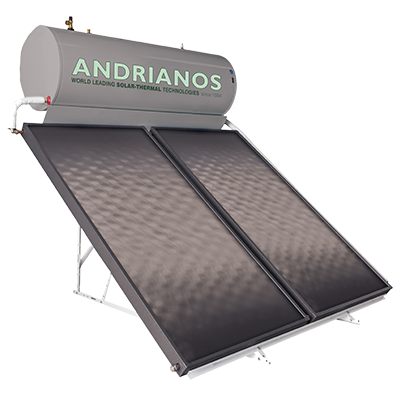

Solar Water Heater ANDRIANOS 200/300

Thermosiphonic systems (Solar Water Heaters) ANDRIANOS with boiler 200lt and solar panel 3.00 sq.m. certified according to Solar key mark.

The ANDRIANOS Thermosiphonic system comes with 10 years guarantee for solar collectors and 5 years guarantee for boilers.

The sealing materials are EPDM, silicone and polyurethane sealant for maximum resistance to extreme temperatures and absolute tightness of the collector.
The glass cover is prismatic tempered-security, low iron transparency glass 3,2mm.
The frame of the collector is aluminum powder coated with special treatment for maximum resistance in coastal areas.

Advantages of Solar Heaters ANDRIANOS

• Collector AND-SOLAR Premium is a flat plate collector encasing harp type absorber with very high efficiency level. The efficiency factor of Premium collector is η_col=67% according to EN12975, making Premium the most powerful certified collector of Greece and one among the best harp type collectors worldwide. This collector has been tested in NSCR DEMOKRITOS laboratory in Greece and is certified with SOLAR KEYMARK.
• It is in TOP 5 of the collectors in Europe at a degree of efficiency η_col=67% according to EN12975.
• Insulation of collectors: 40mm.
• Water storage tank: Consists of hot rolled steel, 3mm thick with double internal layer of enamel, processed at 860° c, according to DIN 4753 standard.
• Thermal insulation: Ecological, incombustible and water-soluble high-density (>50kg/m³) expanded polyurethane surrounds the water storage tank and jacket for minimum heat loss, maintaining the hot water temperature, thickness 50mm.
• Close loop boiler with double enameled water storage tank.
• Full selective PVD absorbing surface for faster production of high temperatures.
• Water frame made from copper tubes 100%.
• Safety low iron tempered glaze.
• All connections are on the side. Easy to be placed on tiles roofs.
• High quality, recyclable environment-safe materials with high endurance over time.
• Maximum heat transfer from absorbing surface to water frame, thanks to laser welding technology.
• High endurance support structures for installations on flat roofs & inclined tile roofs installations.
• Easy and safe installation thanks to high quality materials and hydraulic fittings-accessories.

 ANDRIANOS Thermosiphonic Systems Technical Specifications

AND SOLAR Premium Solar Collectors Technical Specifications

ANDRIANOS Solar Boilers Technical Specifications

In the market sector of thermosiphonic systems, which has special requirements and high competition, the solar water heating system ANDRIANOS, with dozens of successful installations, confirms the high expertise of ANDRIANOS in solar thermal systems.
This excellent product, in addition to the well known quality of ANDRIANOS, also offers an excellent price/money factor.
