Solar Water Heater ANDRIANOS 160 L-H 272
Thermosiphonic systems (Solar Water Heaters) Low Height ANDRIANOS with capacity 160lt and solar panel 2.37 sq.m. certified according to Solar key mark.
ANDRIANOS Thermosiphonic system comes with 10 years guarantee for solar collectors and 5 years guarantee for boilers.
This particular series is developed after serious study and intensive tests. The objective of the design optimization was to achieve two goals at the same time:
To maximize its performance while maintaining its max height as low as possible. The obvious restrictions of such design were on the one hand the collector’s minimum inclination in order to keep performing satisfactorily and on the other hand not to prevent the natural circulation, which is generated according to the thermosiphon effect.
The results of this R&D study were the ELIT series (extremely low inclination thermosiphonic) that is ideal for installations that are subjected to aesthetic restrictions such as in traditional countryside, tourist areas and islands (hotels, guesthouses). This thermosiphonic system remains almost invisible while especially during the summer and in Mediterranean areas.
With the premium collector AND-SOLAR Premium. Easy assembly and fitting.
Advantages of Solar Heaters ANDRIANOS
- Collector AND-SOLAR Premium is a flat plate collector harp type absorber with very high efficiency level. The efficiency factor of Premium collector is ηcol=67% according to EN12975, making AND-SOLAR Premium the most powerful certified collector of Greece and one among the 5 best flat plate collectors worldwide. This collector has been tested in NSCR DEMOKRITOS laboratory in Greece and is certified with SOLAR KEYMARK.
- Absorbing surface: Is made of Aluminum in 0,5mm thickness coated with high selective blue titanium treatment (α=95%, ε=5%). Selective treatment for the absorbers can be high selective Tinox Energy or MirothermAlanod.
- Raw materials: High quality, guarantee long life service and high efficiency.
- Water storage tank: Consists of hot rolled steel, 3mm thick with double internal layer of enamel, processed at 860° c, according to DIN 4753 standard. Support structures.
- Low profile (maximum height of thermosiphonic system 94cm).
- Easy, quick and safe placement, placement in flat surface
ANDRIANOS L-H Thermosiphonic Systems Technical Specifications
|
160 L-H 237 |
160 L-H 272 |
200 L-H 272 |
300 L-H 474 |
|
|
Capacity |
156lt |
156lt |
197lt |
286lt |
|
# collectors |
1 |
1 |
1 |
2 |
|
Area / collector m2 |
2,37 |
2,72 |
2,72 |
2,37 |
|
Total collectors area m2 |
2,37 |
2,72 |
2,72 |
4,74 |
|
Guarantee |
Collectors: 10 years / boilers 5 years |
|||
AND SOLAR Premium Solar Collectors Technical Specifications
Solar Collector[Specifications \ Area] |
2,37 m2 |
2,72 m2 |
| Gross Area | 2,37 m2 | 2,72 m2 |
| Height x Width x Thickness [mm] | 1930 x 1230 x 86 | 2160 x 1260 x 86 |
| Weight (empty) | 43 kg | 48 kg |
| Maximum operating pressure | 10 bar | |
| Stagnation temperature | 231,09 °C | |
| Absorber Area | 2,23 m2 | 2,57 m2 |
| Thermal liquid capacity | 1,70 lt | 1,85 lt |
| Absorbing surface material | Alumimum Sheet of thickness 0,5mm | |
|
Absorber treatment |
PVD High Selective (α=95%, ε=5%) | |
|
Guarantee |
10 years | |
ANDRIANOS Solar Boilers Technical Specifications
Solar Boiler Type[Specifications\ Liters] |
160 |
200 |
300 |
|
| Capacity |
156 lt | 197 lt | 286 lt | |
| Dimensions DxL (mm) | 580x1116 | 580x1356 | 696x2120 | |
| Heat exchanger capacity | 12,9 lt | 18,3 lt | 25,8 lt | |
| Heat exchanger surface | 0,91 m2 | 1,28 m2 | 1,79 m2 | |
| Thermal Insulation | Polyurethane | |||
| Weight empty | 66,8 kg | 81,8 kg | 114,5 kg | |
| Max working temperature / Max operating pressure | 99οC / 10bar |
|||
|
Factory Pressure Test [bar] |
15 bar | |||
| Energy efficiency | C | |||
|
Guarantee |
5 years | |||

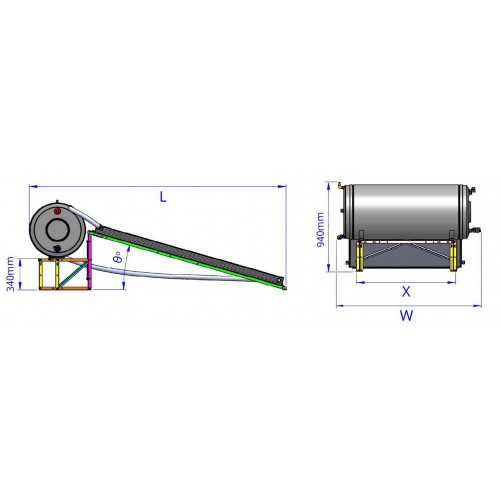

Total dimensions of thermosiphonic systems ANDRIANOS
|
“W” MAXIMUM WIDTHS ANDRIANOS L-H (with collectors/boiler) |
|||
|
160 L-H 237 |
160 L-H 272 |
200 L-H 272 |
300 L-H 474 |
|
1340mm |
1350mm |
1480mm |
2685mm |
|
“L” MAXIMUM LENGTHS ANDRIANOS L-H (with collectors/boiler) |
|||
|
160 L-H 237 |
160 L-H 272 |
200 L-H 272 |
300 L-H 474 |
|
2660mm |
2830mm |
2830mm |
2830mm |
|
“X” COLLECTOR SUPPORT WIDTH FOR ANDRIANOS L-H |
|||
|
160 L-H 237 |
160 L-H 272 |
200 L-H 272 |
300 L-H 474 |
|
935mm |
935mm |
1027mm |
1025mm |
|
“θο” SLOPE ANGLE ANDRIANOS L-H |
|||
|
160 L-H 237 |
160 L-H 272 |
200 L-H 272 |
300 L-H 474 |
|
17ο |
15ο |
15ο |
15ο |
In the market sector of thermosiphonic systems, which has special requirements and high competition, the solar water heating system ANDRIANOS, with dozens of successful installations, confirms the high expertise of ANDRIANOS in solar thermal systems.
This excellent product, in addition to the well known quality of ANDRIANOS, also offers an excellent price/money factor.
| Heater Operation Type | |
|---|---|
| Solar | |
| Heater Collector Type | |
| Selective | |
| Heater Capacity | |
| From 151 to 250 lt | 160 |
| Heater Container Material | |
| Glass | |
| Heater Collector Surface | |
| Collector Surface (m²) | 2.72 |
| Heater Type | |
| Low Height | |
